Thermal scanning a board before repair lets us see the problem before a soldering iron is ever picked up. A thermal camera reveals which parts dissipate power beyond normal, even before the enclosure is opened and the board is disassembled. For industrial electronics this is especially valuable with floating and intermittent faults, when the multimeter stays silent but the board still misbehaves. Below we explain how we use thermal diagnostics and why it saves time and lowers the risk of secondary damage.
Why heat is an indicator of a defect
Every electrical defect ultimately turns into heat. A leaky component dissipates excess power, a shorted junction heats up almost instantly, and an overloaded regulator runs hotter than intended. The thermal picture of a healthy board is predictable: the nodes that are meant to warm up do so, and only as much as the designer intended.
Any departure from that picture is the signal. A part that is barely warm on a good board but glowing hot on a faulty one is almost certainly in the failure path or is the cause itself. A thermal camera turns the invisible distribution of power into a clear map where the anomaly stands out at once.
Crucially, a thermal camera registers infrared radiation from the surface, not an electrical parameter. So it sees the problem where a meter reading is still within spec: a component may formally stay within its voltage tolerances yet already dissipate excess power because of incipient degradation. A multimeter misses that early sign, whereas the heat map records it.
What we look for on a heat map
Thermal diagnostics solve several specific problems that other methods handle less well.
- Power shorts. A shorted rail draws heavy current, and the guilty point heats up fastest. On a heat map it stands out as a local peak, even when the board looks intact to the eye.
- Leakage and degraded components. A leaky capacitor or a weakened semiconductor heats up where it should not. This is exactly the case where the signature on BoardMaster shows a slight deviation while the thermal camera shows a clear hotspot.
- Overloaded and misbehaving circuits. A regulator or switch running out of spec gives itself away with elevated temperature well before it fails for good.
- Cold zones. The absence of heat where there should be some is also a diagnosis: the circuit has no power, the component is not working, the node is dead.
Thermal imaging for intermittent faults
The hardest cases are floating faults that appear on warm-up, on vibration, or an hour into operation. A classic multimeter reading catches only the current state, whereas a thermal camera records the dynamics. We watch how the thermal picture changes as the board reaches operating conditions, and often it is the growing anomaly that reveals a component which is degrading but has not yet fully failed.
These are the kind of faults that keep equipment bouncing between service shops for months. Early thermal diagnostics catch degradation before catastrophic failure. We cover load testing after repair separately in our article on post-repair burn-in testing.
Safe first power-up
A separate and very practical role of the thermal camera is protection during the first power-up of an unfamiliar board. Before applying full power, we use a current-limited supply and watch the board through the thermal camera at the same time. If a hotspot flares up somewhere instantly, power is removed within seconds, before the defect can drag adjacent circuits down with it.
This approach sharply reduces the risk of secondary damage, which is often more expensive than the original fault. It matters most for boards that are no longer manufactured: turning one failed component into a burned-out area means losing the whole board.
Pairing thermal imaging with BoardMaster and X-ray

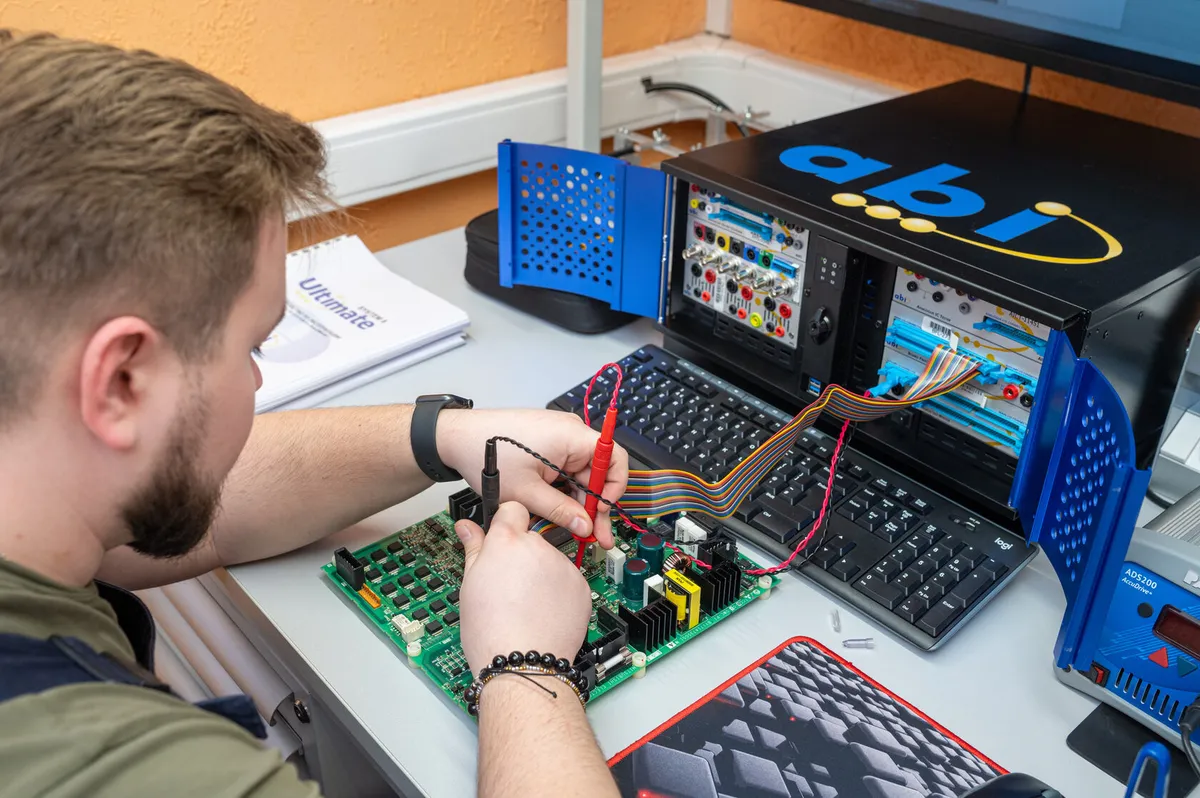

The thermal camera answers the question of where, but not always the question of why. So on complex boards we combine methods. A hotspot found with the thermal camera is confirmed on BoardMaster using known-good comparison: the analog signature shows whether the component is shorted, leaky or open.
If the anomaly involves a BGA component with pins hidden under the body, X-ray inspection comes in. It reveals the physical state of the solder balls, which neither a thermal camera nor a probe can see. This three-level approach of electrical, thermal and physical inspection gives a full and reliable picture.
All work follows ESD requirements and the IPC-7711 and IPC-7721 repair standards, so that diagnostics and restoration do not introduce new defects.
What this gives the customer
For the customer, thermal scanning before disassembly means faster and more honest diagnostics. We isolate hotspots in minutes instead of hours of step by step probing, reduce the risk of ruining a board on first power-up, and can show the cause of failure clearly on the thermal image itself.
This method is part of our standard diagnostic route for projects in oil and gas, automotive electronics and marine equipment, where reliability matters more than speed. In those conditions equipment runs in harsh regimes, and a hidden thermal anomaly left unresolved during repair will almost certainly cause a repeat failure at the worst possible moment. So the thermal camera is not a one-off tool for us but a mandatory incoming inspection step: we capture the heat map before disassembly and repeat the scan after repair, to confirm the anomaly is gone rather than shifted to an adjacent node.
If you have a board with overheating, unclear behavior or a floating fault, bring it in for diagnostics. We will capture the heat map, localize the problem and propose a solution. You can reach us through our contact page.
